The stated assumption is that each chassis requires 0.5 sq m of floor space. The
other resources are either contained within or placed upon the chassis, so the space
required is just a function of the number of chassis installed. The way this requirement
is captured is a generalisation of the technique we used in
Exercise 13 to drive the chassis itself:
-
Create a new transformation, and name it
Space required.
-
Connect from the Access chassis resource
to the transformation, using the quick-link target again to pre-select
Basis = Installed Units.
-
Open the Input and Transformation
dialog. The Input is already wired up.
-
Set the Output Unit and
Multiplier inputs as shown below.
(We didn’t need to set the Multiplier
last time because each card required exactly one slot in the chassis.)
-
Connect on from the transformation to the Space
resource, and choose Requirements as the resource
input to set as before.

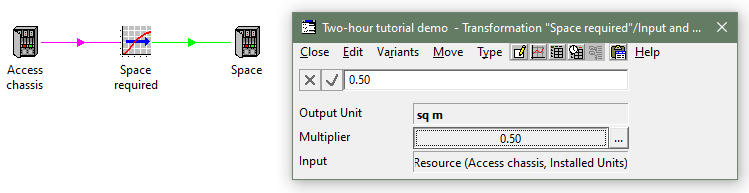

Figure 40: The Multiplier input
governs the overhead in sq m per chassis, independent of the pricing unit
This means that each installed unit of the chassis requires 0.5
sq m of capacity from the Space resource.
We can quickly check the arithmetic:
-
Run the model. The Results program is activated.
-
Draw the graph Instantaneous Output for
the transformation, Space required. You should
see that this starts at 12.5 sq m (0.5 sq m × 25 units), and then gradually
increases to 14 sq m as additional chassis are installed.
-
We should expect the monthly opex for Space
to rise to USD 1400 (USD 100 × 14), corresponding to an annual opex of USD
16 800.
-
Add Space to the stacked
Operating Costs graph. (Why not
Capital Expenditure?)
-
Show as a separate table to check the numbers. How many sq m are being charged
for in Y1?

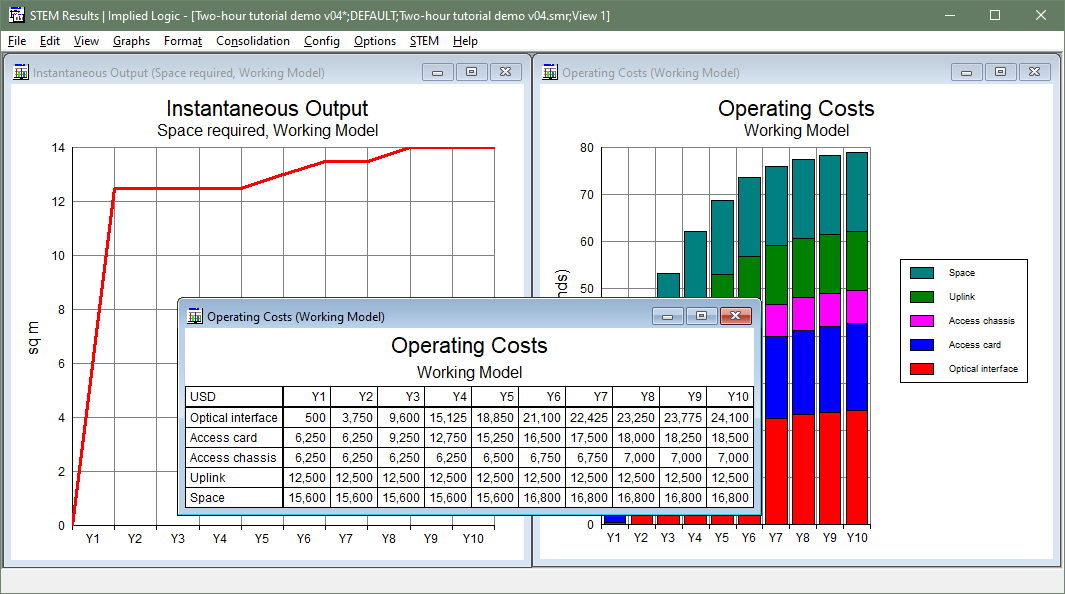

Figure 41: The opex for Space is not quite proportional
to the Space required in sq m
Things that you should have seen and understood
Multiplier, Instantaneous Output
